LongArm

The CS Series of actuators are a portable device designed to remotely operate control switches with pistol-grip style handles. Several models are available depending on the type of control switch being operated.

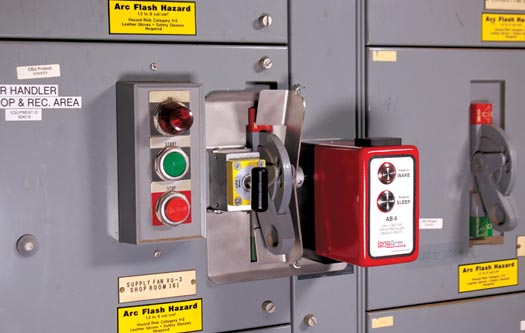

The CS Series of actuators are temporarily installed over you control switch and held in place magnetically. No modification to your switch gear is required. A hand-held controller, connected by a cable to the actuator allows the operator to be positioned outside the arc flash hazard zone.  A motor and gearbox in the actuator rotates the control switch on command from the hand-held controller. A microcontroller monitors controller inputs, assures correct switch position, and drives the motor through an intelligent H-bridge. The entire unit is battery powered (24VDC) which eliminates the need for external power.

Are you familiar with MarTek’s other remote products?

Remotely rack breakers with a portable option that does not require setup or breaker alteration.

Remotely operate control switches or trip breakers with the Chicken Switch line of products.

Remote MCC Operators for various models of motor control centers with 90 or 120 degree throw distance.

Click To View Arc-Flash Protection Products
